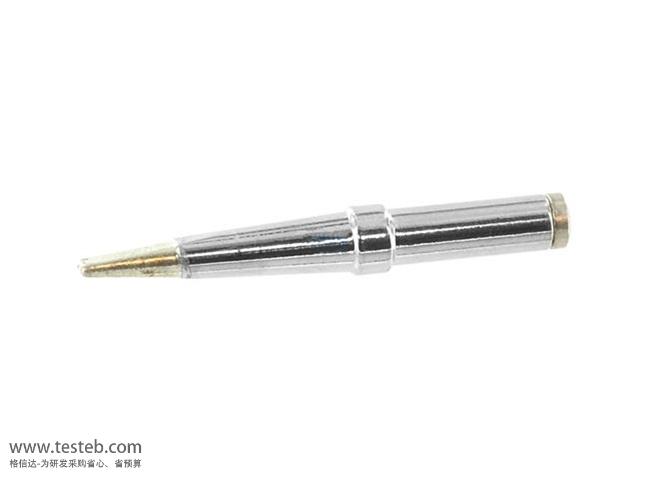

德國進口烙鐵頭Weller PTM9適用于TCP12、TCP24磁控焊筆50W，可用于焊接溫度480℃焊錫作業，訂貨號4PTM9-1，weller物料號T0054119999，深圳格信達代理商原裝，價格優惠。

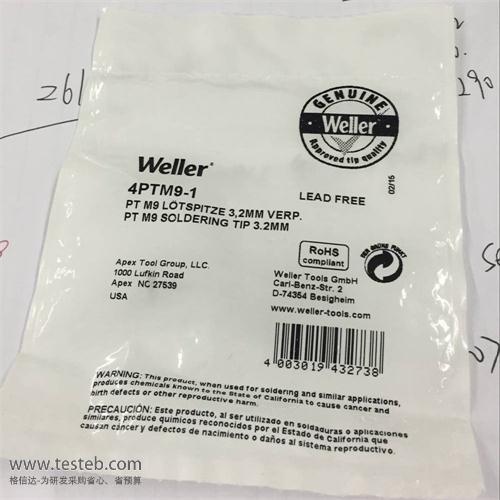

Weller威樂高端進口烙鐵頭PT系列4PTM9-1烙鐵頭適用50W磁控焊筆TCP 12、TCP 24焊筆，焊咀為鑿狀長烙鐵頭，溫度480℃。PTM9烙鐵頭SOLDERING TIP 3.2MM訂貨號T0054119999。如果需要其他尺寸的烙鐵頭用于TCP焊筆，請使用LT烙鐵頭和PT/LT連接頭。

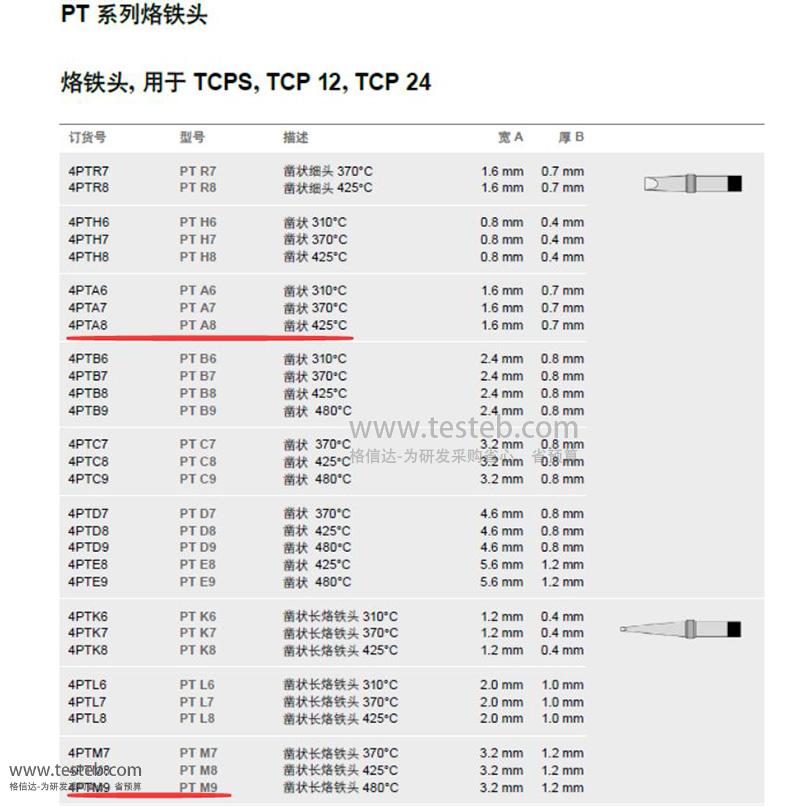

| weller物料號 訂貨號 | 型號 | 描述，焊咀形狀、烙鐵溫度 | 寬A | 厚B |
| 4PTR7 | PT R7烙鐵咀 | 鑿狀細頭 370℃ | 1.6mm | 0.7 mm |
| 4PTR8 | PT R8 | 鑿狀細頭 425℃ | 1.6mm | 0.7 mm |
| 4PTH6 | PT H6 | 鑿狀 310℃ | 0.8mm | 0.4 mm |
| 4PTH7 | PT H7 | 鑿狀 370℃ | 0.8mm | 0.4 mm |
| 4PTH8 | PT H8 | 鑿狀 425℃ | 0.8mm | 0.4 mm |
| 4PTA6 | PT A6 | 鑿狀 310℃ | 1.6mm | 0.7 mm |
| 4PTA7 | PT A7 | 鑿狀 370℃ | 1.6mm | 0.7 mm |
| 4PTA8-1烙鐵頭 | PT A8烙鐵咀 | 鑿狀 425℃ | 1.6mm | 0.7 mm |
| 4PTB6 | PT B6 | 鑿狀 310℃ | 2.4mm | 0.8 mm |
| 4PTB7 | PT B7 | 鑿狀 370℃ | 2.4mm | 0.8 mm |
| 4PTB8 | PT B8 | 鑿狀 425℃ | 2.4mm | 0.8 mm |
| 4PTB9 | PT B9 | 鑿狀 480℃ | 2.4mm | 0.8 mm |
| 4PTC7 | PT C7 | 鑿狀 370℃ | 3.2mm | 0.8 mm |
| 4PTC8 | PT C8 | 鑿狀 425℃ | 3.2mm | 0.8 mm |
| 4PTC9 | PT C9 | 鑿狀 480℃ | 3.2mm | 0.8 mm |
| 4PTD7 | PT D7 | 鑿狀 370℃ | 4.6mm | 0.8 mm |
| 4PTD8 | PT D8 | 鑿狀 425℃ | 4.6mm | 0.8 mm |
| 4PTD9 | PT D9 | 鑿狀 480℃ | 4.6mm | 0.8 mm |
| 4PTE8 | PT E8 | 鑿狀 425℃ | 5.6mm | 1.2 mm |
| 4PTE9 | PT E9磁控焊咀 | 鑿狀 480℃ | 5.6mm | 1.2 mm |
| 4PTK6 | PT K6 | 鑿狀長頭 310℃ | 1.2mm | 0.4 mm |
| 4PTK7 | PT K7 | 鑿狀長頭 370℃ | 1.2mm | 0.4 mm |
| 4PTK8 | PT K8 | 鑿狀長咀 425℃ | 1.2mm | 0.4 mm |
| 4PTL6 | PT L6 | 鑿狀長 310℃ | 2.0mm | 1.0 mm |
| 4PTL7 | PT L7 | 鑿狀長 370℃ | 2.0mm | 1.0 mm |
| 4PTL8 | PT L8 | 鑿狀長 425℃ | 2.0mm | 1.0 mm |
| 4PTM7 | PT M7 | 鑿狀長焊咀 370℃ | 3.2mm | 1.2 mm |
| 4PTM8 | PT M8 | 鑿狀長 425℃ | 3.2mm | 1.2 mm |
| 4PTM9-1烙鐵頭 | PT M9控溫烙鐵頭 | 鑿狀長頭 480℃ | 3.2mm | 1.2 mm |
| T0054130799 | PT MX7烙鐵頭 | 鑿狀彎頭，一側沾錫 370℃ | 3.2mm | 1.2 mm |
| 4PTCS7 | PT CS7 | 圓形 370℃ | 直徑Ø 3.2 mm | |
| 4PTDS7 | PT DS7 | 圓形 370℃ | Ø 5.0 mm | |
| 4PTS7 | PT S7 | 圓形長頭 370℃ | Ø 0.4 mm | |
| 4PTS8 | PT S8控溫烙鐵咀 | 圓形長頭 425℃ | Ø 0.4 mm | |
| 4PTO6 | PT O6 | 圓形長咀 310℃ | Ø 0.8 mm | |
| 4PTO7 | PT O7 | 圓形長頭 370℃ | Ø 0.8 mm | |
| 4PTO8 | PT O8 | 圓形長頭 425℃ | Ø 0.8 mm | |
| 4PTF7 | PT F7 | 圓形斜口 370℃ | Ø 1.2 mm | |
| 4PTF8 | PT F8烙鐵嘴 | 圓形斜口 425℃ | Ø 1.2 mm | |
| 4PTAA7 | PT AA7 | 圓形斜口 370℃ | Ø 1.6 mm | |
| 4PTAA8 | PT AA8 | 圓形斜口 425℃ | Ø 1.6 mm | |
| 4PTAA9 | PT AA9 | 圓形斜口 480℃ | Ø 1.6 mm | |
| 4PTBB7 | PT BB7 | 圓形斜口 370℃ | Ø 2.4 mm | |
| 4PTBB8 | PT BB8 | 圓形斜口 425℃ | Ø 2.4 mm | |
| 4PTBB9 | PT BB9 | 圓形斜口 480℃ | Ø 2.4 mm | |
| 4PTCC7 | PT CC7 | 圓形斜口 370℃ | Ø 3.2 mm | |
| 4PTCC8 | PT CC8 | 圓形斜口 425℃ | Ø 3.2 mm | |
| 4PTCC9 | PT CC9 | 圓形斜口 480℃ | Ø 3.2 mm | |
| 4PTDD7 | PT DD7 | 圓形斜口 370℃ | Ø 5.0 mm | |
| 4PTDD8 | PT DD8 | 圓形斜口 425℃ | Ø 5.0 mm | |
| 4PTDD9 | PT DD9 | 圓形斜口 480℃ | Ø 5.0 mm |
威樂PT系列高端電烙鐵頭規格說明書 http://www.jwjzzs.com/download/201605/Weller_PT.pdf
