美國VIRTUAL VWWB-2A-MW8真空晶圓吸筆套件帶8寸PEEK筆頭

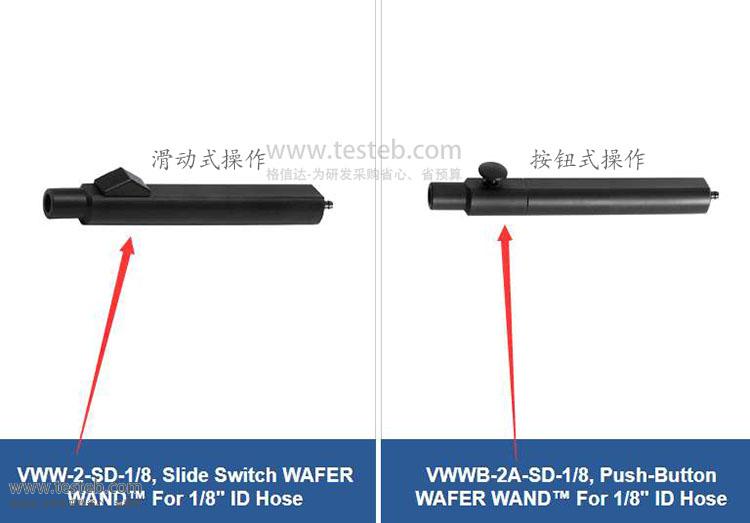

美國Virtual空壓式真空晶圓吸筆套件分為按鈕式和滑動式，連接連續真空系統，配套不同規格PEEK吸筆頭實現4寸、6寸、8寸、12寸Wafers晶圓拾取轉移。輕巧的按鈕式PUSH-BUTTON WAFER WAND®常開真空，按下按鈕關閉真空并釋放晶圓。SLIDE SWITCH WAFER WAND® Kits通過向前滑動開關來吸取晶圓，向后滑動則關閉真空并釋放晶片；當開關處于后部位置時，真空也被阻擋，因此不會對空壓管線系統施加過多的需求。工具均由Static Dissipative Delrin靜電消散樹脂材質構成，配6英尺2米盤繞真空軟管、倒鉤螺紋適配器、支架和可更換的PEEK聚醚醚酮晶片吸頭。

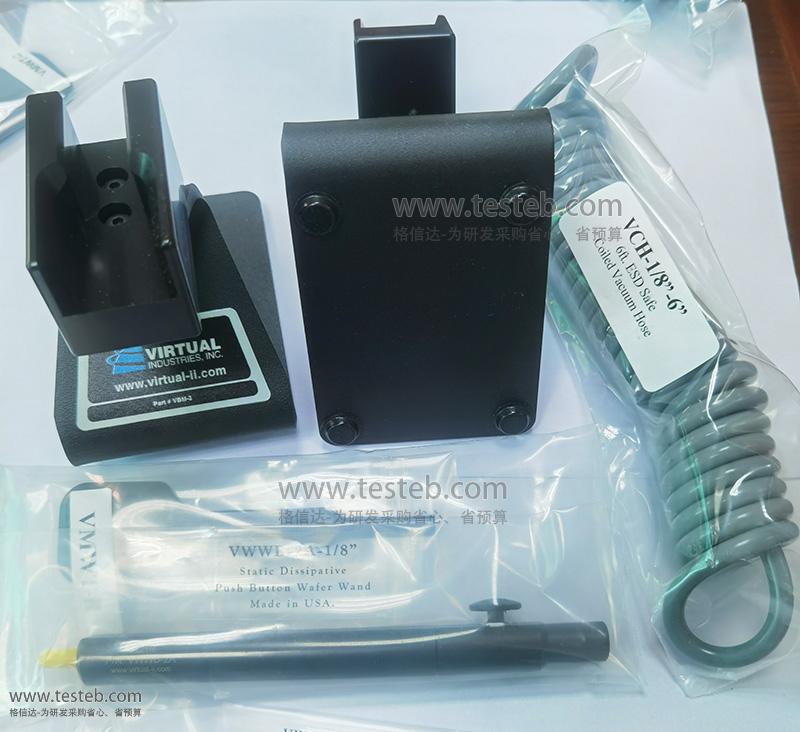

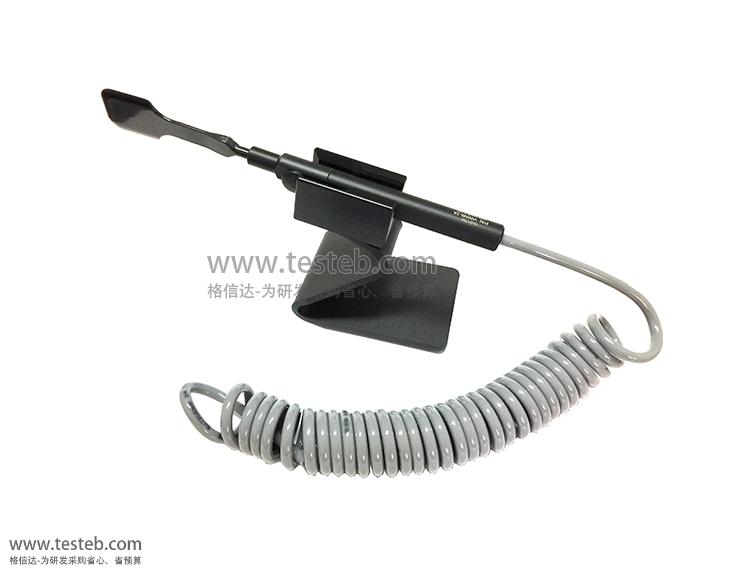

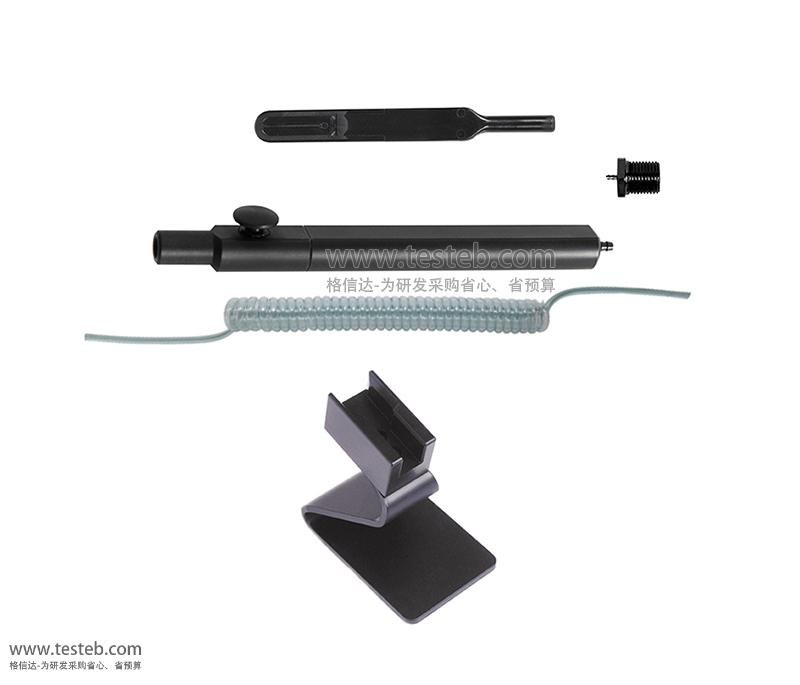

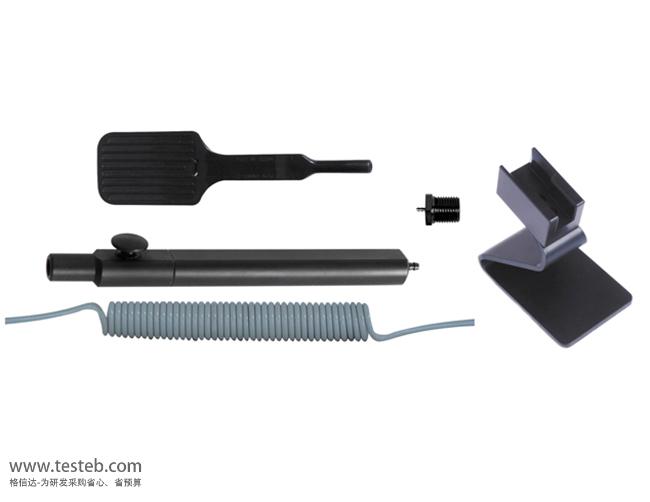

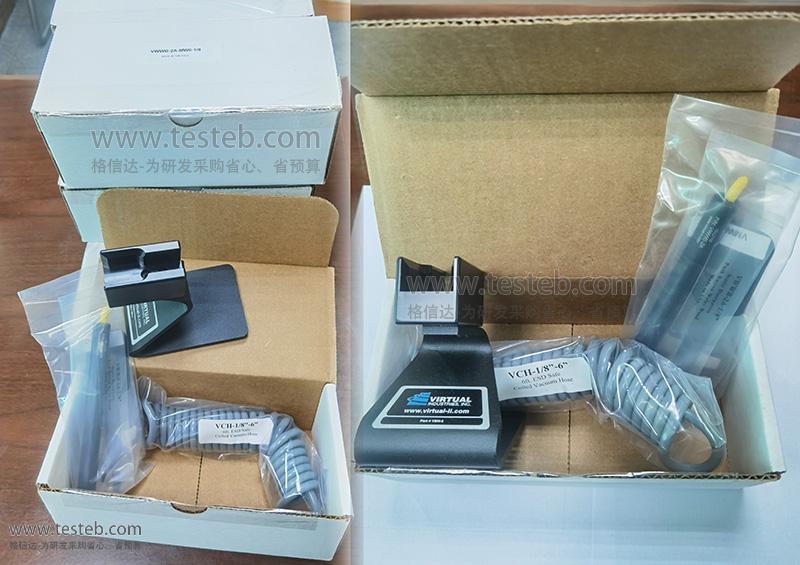

VIRTUAL VWWB-2A-MW8-1/8八寸晶圓真空吸筆套件，包含1/8英寸內徑接口按鈕式筆桿VWWB-2A-SD-1/8、VMWT-C 8寸PEEK吸筆頭以及VBM-2支架、1.8米連接氣管VCH-1/8-6、螺紋口轉接頭，可根據廠務真空氣源接口規格尺寸，選擇1/16“、1/8寸、2.5mm套件。

美國VIRTUAL WAFER WAND真空晶圓吸筆套件型號

一、PUSH-BUTTON WAFER WAND® Kits按鈕式套件，常開

VWWB-2A-MW4-1/16：With 1/16” (1.6mm) ID gray vacuum hose - Wafer Tip (VMWT-A) handles wafers up to 4”

VWWB-2A-MW4-2.5mm：With 2.5mm ID black vacuum hose - Wafer Tip (VMWT-A) handles wafers up to 4”

VWWB-2A-MW4-1/8：帶1/8內徑接口吸筆桿、VMWT-A 4寸wafer吸筆頭、VCH-1/8-6兩米氣管、支架、螺紋適配接頭

VWWB-2A-MW6-1/16：With 1/16” (1.6mm) ID gray vacuum hose - Wafer Tip (VMWT-B) handles wafers up to 6”

VWWB-2A-MW6-2.5mm：With 2.5mm ID black vacuum hose - Wafer Tip (VMWT-B) handles wafers up to 6”

VWWB-2A-MW6-1/8：帶1/8內徑接口吸筆桿、VMWT-B 六寸wafer晶圓吸筆頭、VCH-1/8-6兩米氣管、支架、適配接口

VWWB-2A-MW8-1/16：With 1/16” (1.6mm) ID gray vacuum hose - Wafer Tip (VMWT-C) handles wafers up to 8”

VWWB-2A-MW8-2.5mm：With 2.5mm ID black vacuum hose - Wafer Tip (VMWT-C) handles wafers up to 8”

VWWB-2A-MW8-1/8：帶1/8內徑接口吸筆桿、VMWT-C 8寸晶圓吸筆頭、VCH-1/8-6兩米氣管、支架、適配接口

VWWB-2A-MW12-1/16：With 1/16” (1.6mm) ID gray vacuum hose - Wafer Tip (VMWT-D) handles wafers up to 12”

VWWB-2A-MW12-2.5mm：With 2.5mm ID black vacuum hose - Wafer Tip (VMWT-D) handles wafers up to 12”

VWWB-2A-MW12-1/8：帶1/8內徑接口吸筆桿、VMWT-D 12寸wafer晶圓吸筆頭、VCH-1/8-6兩米氣管、支架、適配接口

VWWB-2A-SD-1/16筆桿：For 1/16” (1.59mm) ID hose, wafer wand only

VWWB-2A-SD-2.5mm握柄：For 2.5mm (2.5mm) ID hose, wafer wand only

VWWB-2A-SD-1/8吸筆：For 1/8” (3.18mm) ID hose, wafer wand only

VBM-2支架：Bench mount wand holder

VBM-4多用途支架：Bench mount holder. Can be used with any of our vacuum handles and pens.

V3014-1/8NPT轉接適配頭：Adapt to 1/16” ID hose, for compressed air applications

二、SLIDE SWITCH WAFER WAND® Kits滑動式套件，常閉

VWW-2-SD-MW4-1/16：With 1/16” (1.6mm) ID gray vacuum hose - Wafer Tip (VMWT-A) handles wafers up to 4"

VWW-2-SD-MW4-2.5mm：With 2.5mm ID black vacuum hose - Wafer Tip (VMWT-A) handles wafers up to 4"

VWW-2-SD-MW6-1/16：With 1/16” (1.6mm) ID gray vacuum hose - Wafer Tip (VMWT-B) handles wafers up to 6"

VWW-2-SD-MW6-2.5mm：With 2.5mm ID black vacuum hose - Wafer Tip (VMWT-B) handles wafers up to 6"

VWW-2-SD-MW8-1/16：With 1/16” (1.6mm) ID gray vacuum hose - Wafer Tip (VMWT-C) handles wafers up to 8”

VWW-2-SD-MW8-2.5mm：With 2.5mm ID black vacuum hose - Wafer Tip (VMWT-C) handles wafers up to 8"

VWW-2-SD-MW12-1/16：With 1/16” (1.6mm) ID gray vacuum hose - Wafer Tip (VMWT-D) handles wafers up to 12”

VWW-2-SD-MW12-2.5mm：With 2.5mm ID black vacuum hose - Wafer Tip (VMWT-D) handles wafers up to 12”

VWW-2-SD-1/16手柄：For 1/16” (1.59mm) ID hose, wafer wand only

VWW-2-SD-2.5mm筆桿：For 2.5mm (2.5mm) ID hose, wafer wand only

VWW-2-SD-1/8吸筆：For 1/8” (3.18mm) ID hose, wafer wand only

空壓式晶圓吸筆規格說明書http://www.jwjzzs.com/download/201804/Virtual_V3200-CLN_VWWB-2A-MW8.pdf

三、STEALTH-WAND™ Kits常開，使用30~70psi壓縮空氣或氮?dú)?/strong>
